Front Bumper Reinforcement - Removal






REMOVAL










1. Remove grille Grille - Removal.
2. Remove front fascia Front Bumper Fascia - Removal.

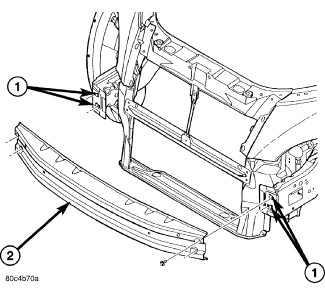

3. Remove bolts (1) attaching reinforcement to the rail assembly and remove reinforcement.
4. Remove bumper reinforcement (2) from vehicle.
