Rear Emergency Tow Hook(s) - Removal






REMOVAL










1. Raise the vehicle on hoist. Maintenance.

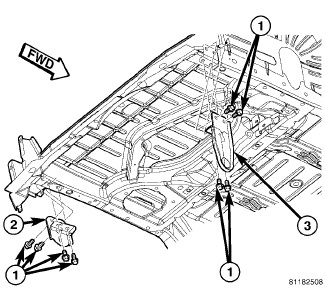

2. Remove four bolts (1) attaching rear side rail tow hook (3) to rear frame rail.
