Radio - Installation

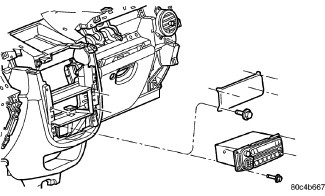

INSTALLATION





1. Connect the wire harness connector and antenna cable to radio.
2. Insert radio into instrument panel.
3. Install mounting fasteners. Tighten to 2 Nm (20 in. lbs.).
4. Install instrument panel center bezel.
5. Connect battery negative cable.
