Hands Free Module (HFM) - Installation






INSTALLATION

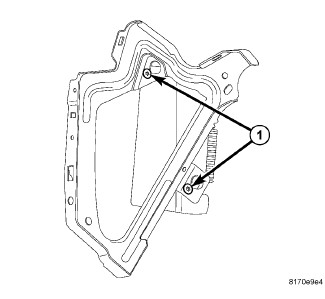

1. Connect electrical harness connector and position module.
2. Install module mounting fasteners.
3. Install the steering column opening cover. Steering Column Opening Cover - Installation
4. Connect battery negative cable.
