Front Crankshaft Oil Seal - Removal






REMOVAL





1. Remove accessory drive belt.

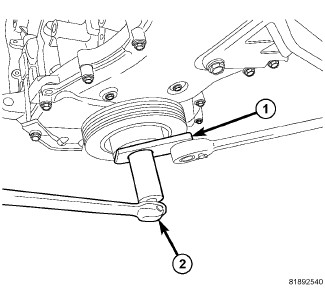

2. Install damper holder 9707 (1) and remove damper retaining bolt.
3. Pull damper off crankshaft.

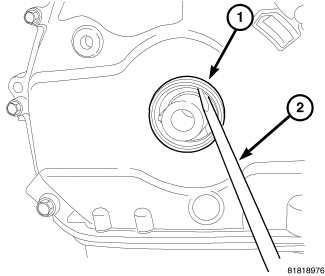

4. Remove front crankshaft oil seal (1) by prying out with a screw driver (2). Be careful not to damage the cover seal surface.
