C115 (Engine Side) 20 Way
C115 (Engine Side) 20 Way

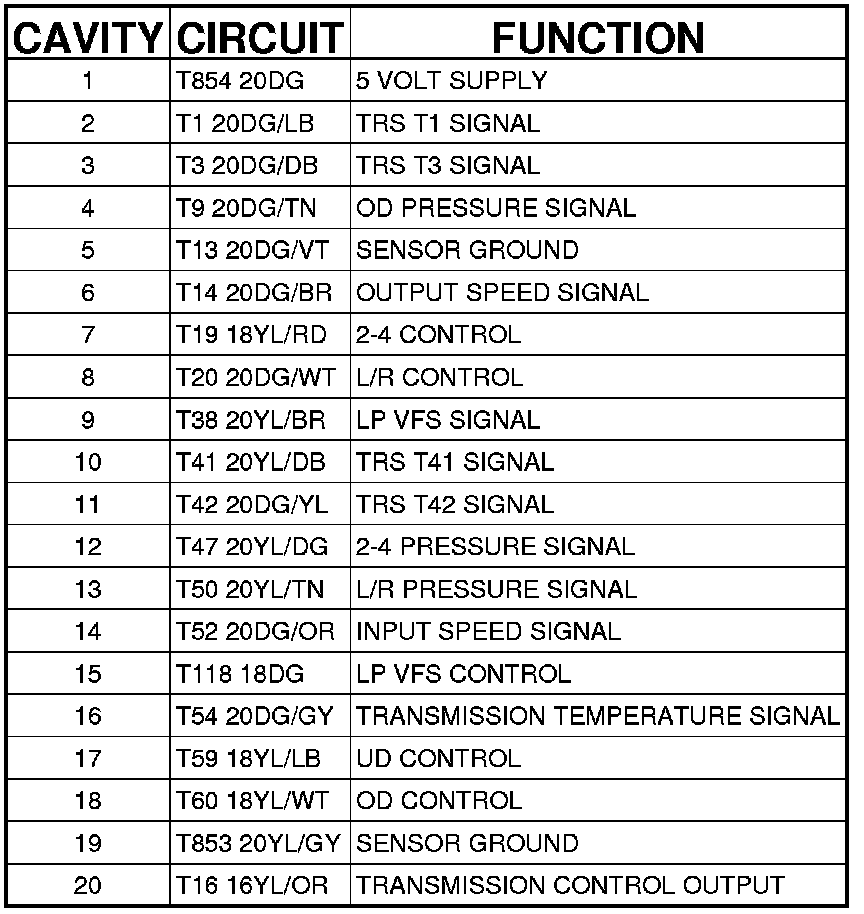

Connector (2.4L) - (ENGINE SIDE) 20 WAY
C115 (2.4L) - (ENGINE SIDE) 20 WAY
