C103 (Headlamp And Dash Side) 20 Way






Connector (2.0L/2.4L/DIESEL) - (HEADLAMP AND DASH SIDE) 20 WAY

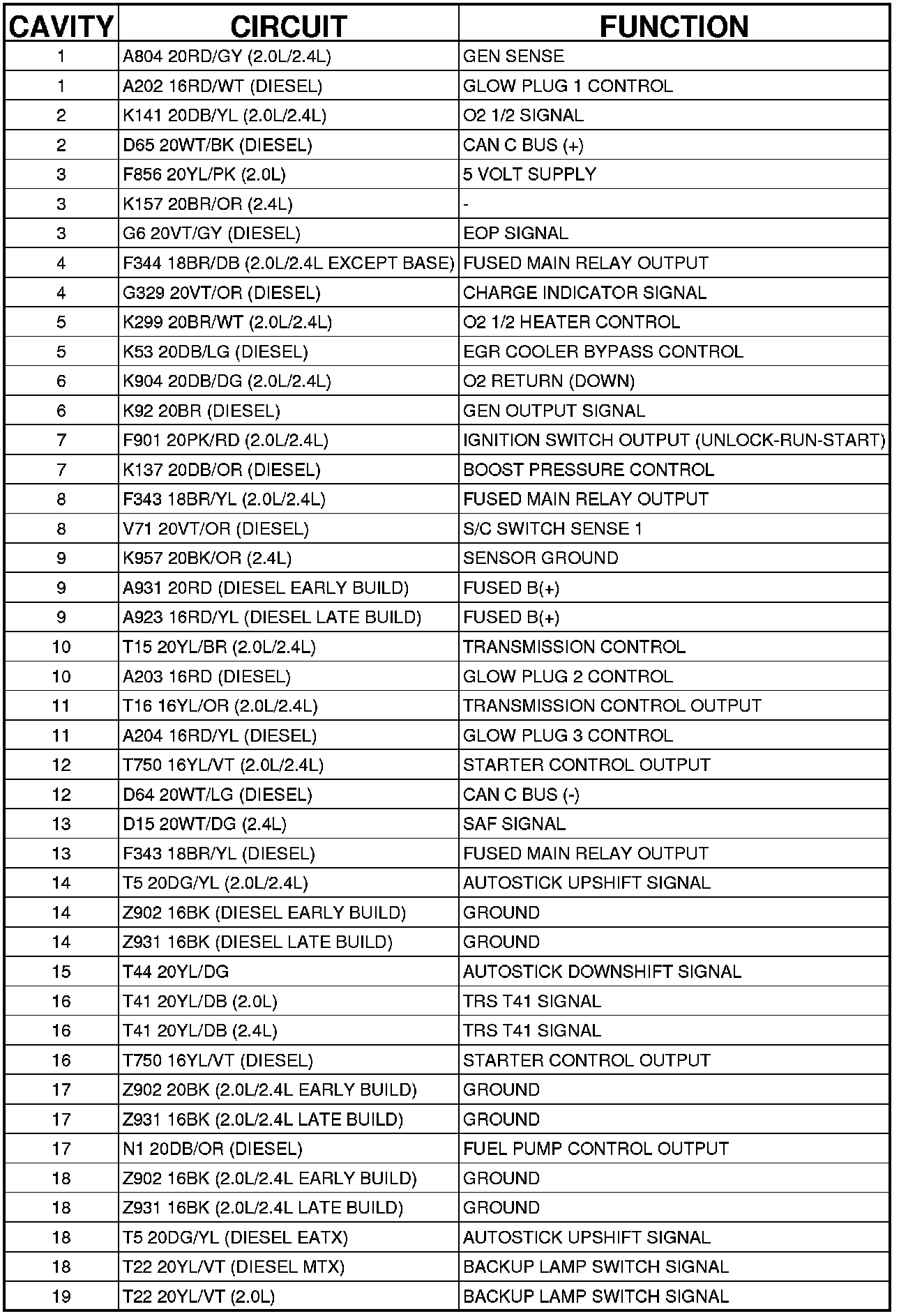

C103 (2.0L/2.4L/DIESEL) - (HEADLAMP AND DASH SIDE) 20 WAY
