Rear Bumper Fascia - Installation

SEBRING SEDAN





1. Ensure that the energy management foam is properly installed in rear fascia.
2. Position fascia on vehicle.
3. Slide fascia forward to engage hooks attaching fascia to bottom of quarter panel.

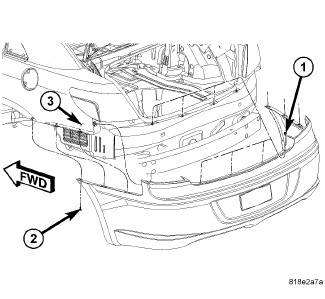

4. Install push-in fasteners (1) attaching center of fascia to trunk opening.

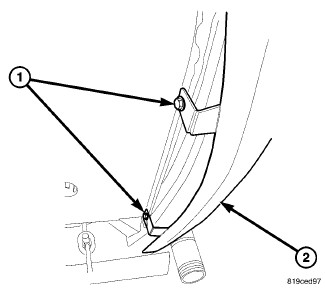

5. Install screws (2) attaching fascia to quarter panel at wheelhouse opening.





6. Install lower fascia fasteners.
7. Install fasteners attaching rear splash shields to wheelhouse.
