Wiper Blade - Installation

INSTALLATION

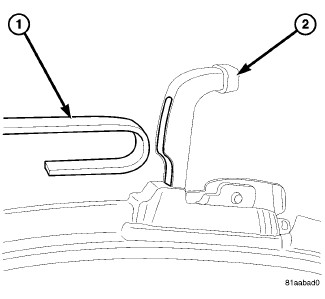

1. Slip the wiper arm (1) through the locking cover (2).

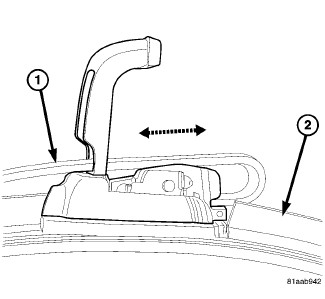

2. Slip the wiper arm (1) into the wiper blade (2) and pull away from vehicle until blade pivot is fully seated in the arm hook.

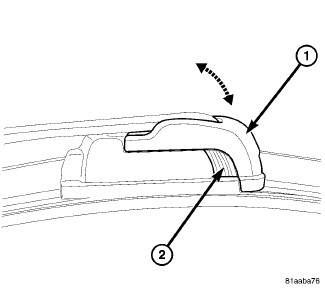

3. Push the locking cover (1) down onto blade until it latches and locks the blade onto the arm.
4. Lower arm onto window.
