Washer Nozzle - Removal






REMOVAL

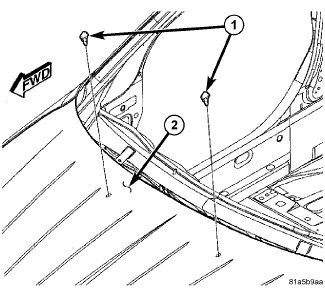

There are two front windshield washer nozzles located on the hood, just forward of the rear edge.





To replace nozzle, open hood and disconnect washer fluid hose from underneath. Using needle nose pliers squeeze together the locking tabs on the nozzle and remove.
