Removal

3.5L

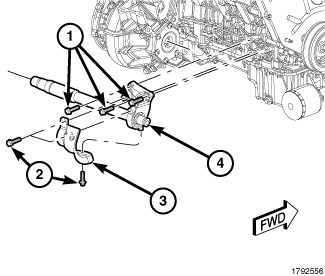

1. Remove the right half shaft Half Shaft - Removal.




2. Remove the intermediate shaft bolts (1).
3. Remove the heat shield bolts (2).
4. Remove the heat shield (3).
5. Remove the intermediate shaft (4).
