Transmission Shifter - Removal

REMOVAL





1. Remove the center console (7) Shifter Housing - Removal.





2. Disconnect battery negative cable.
3. Disconnect BTSI cable (3, 4) from shift mechanism.
4. Disconnect harness connector (1).

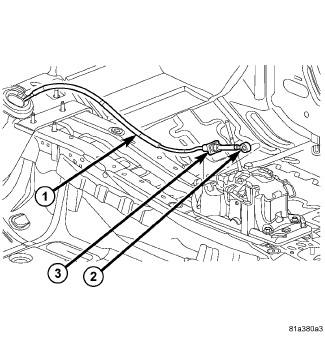

5. Disconnect and remove gearshift cable (2, 3) from shift mechanism.

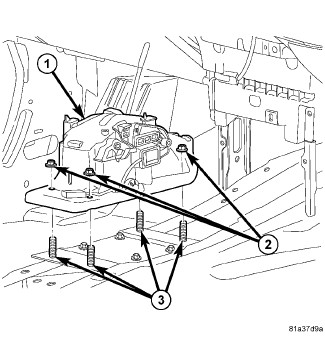

6. Remove four shift mechanism-to-lower console nuts (2). Remove shift mechanism (1).
