Automatic Transmission/Transaxle: Diagrams

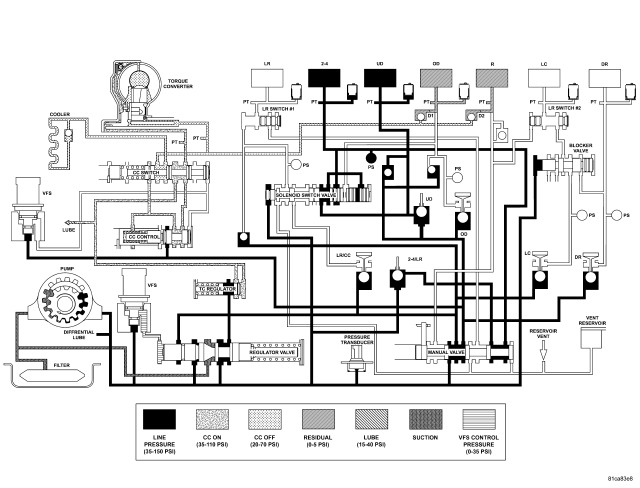

62TE

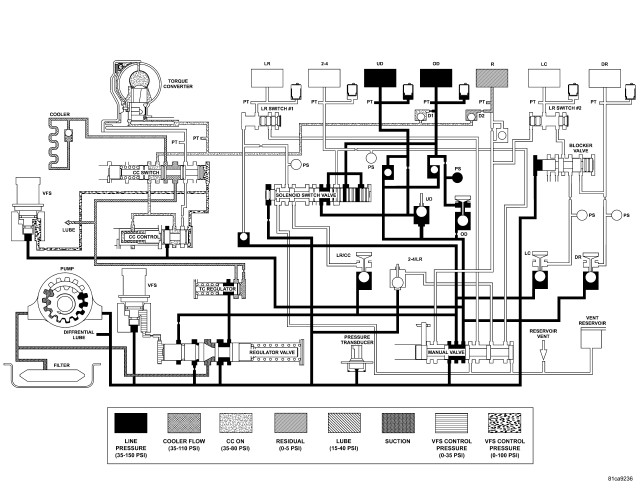

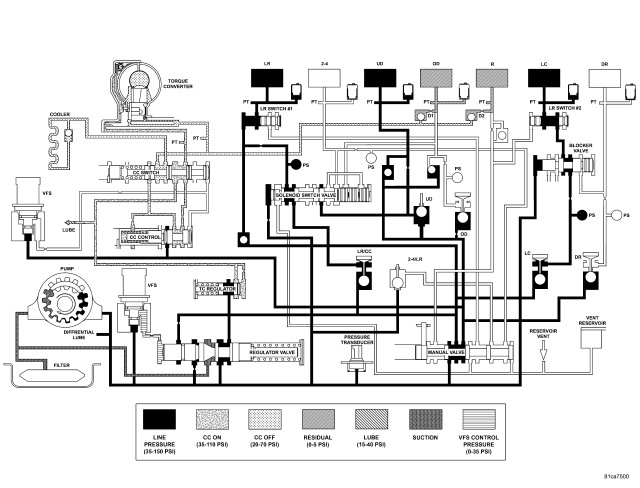

DRIVE FIRST

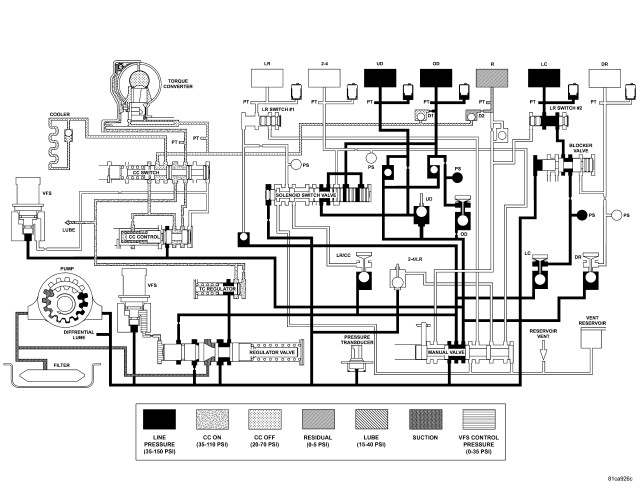

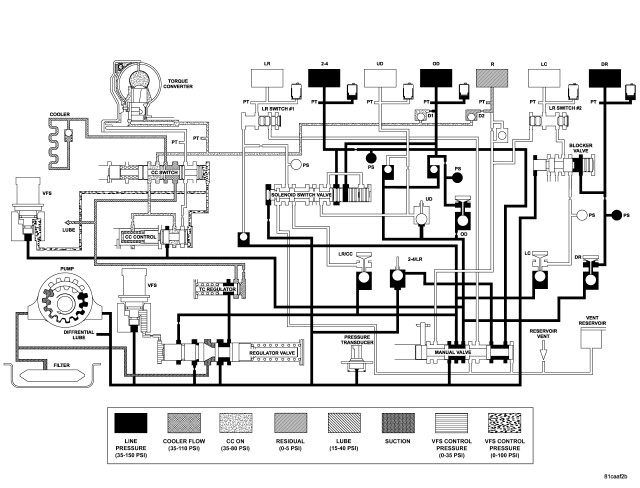

DRIVE FIRST COAST

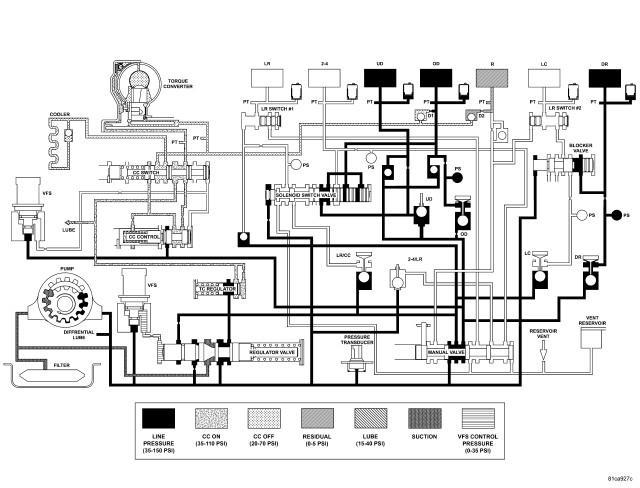

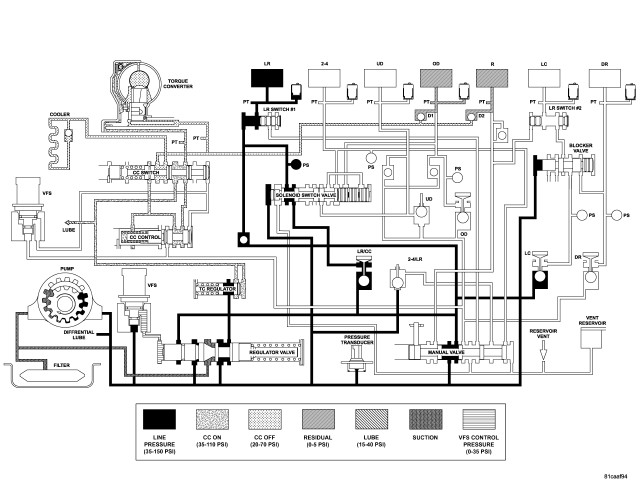

DRIVE FIRST EMCC

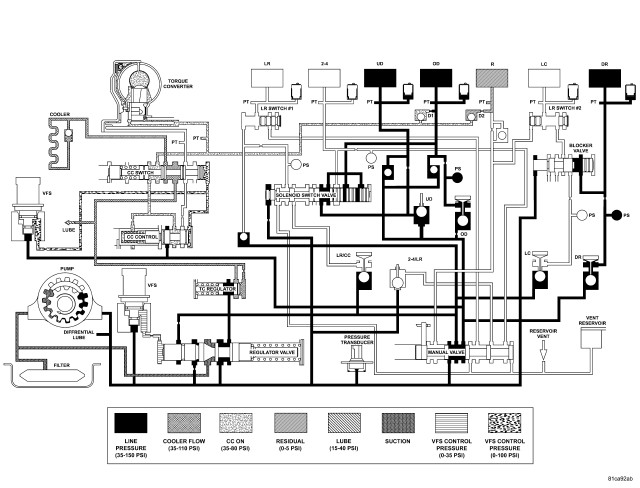

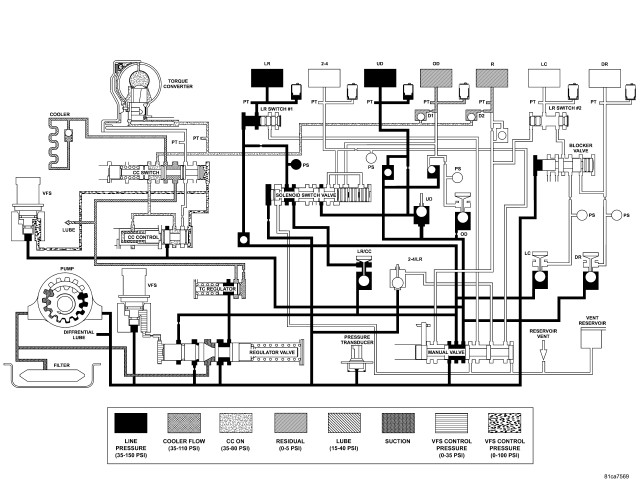

DRIVE SECOND

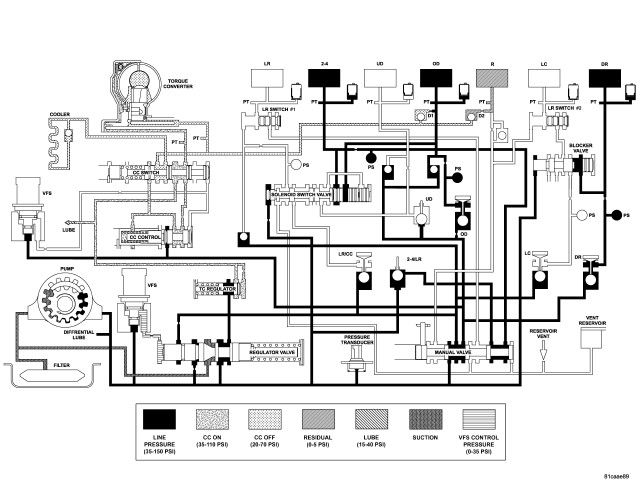

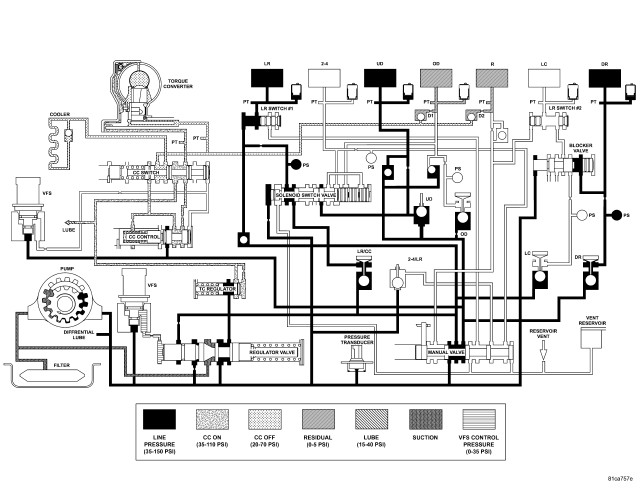

DRIVE SECOND EMCC

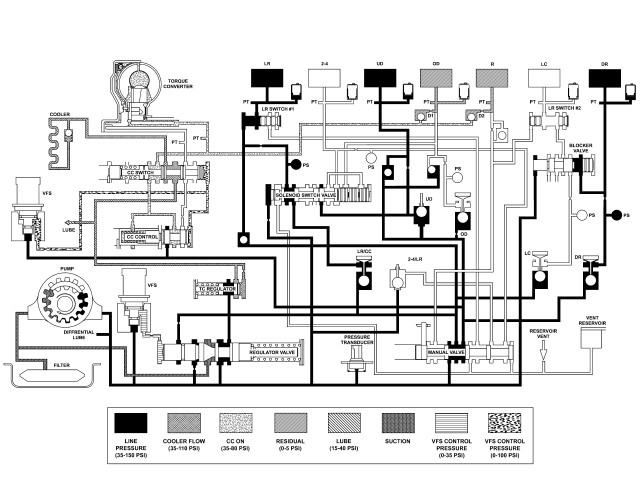

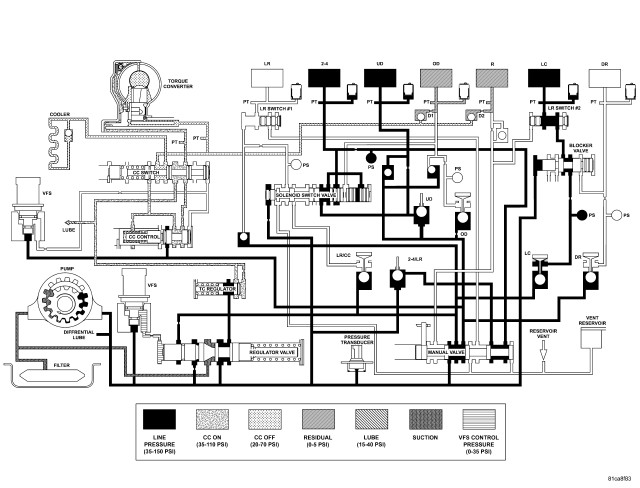

DRIVE THIRD

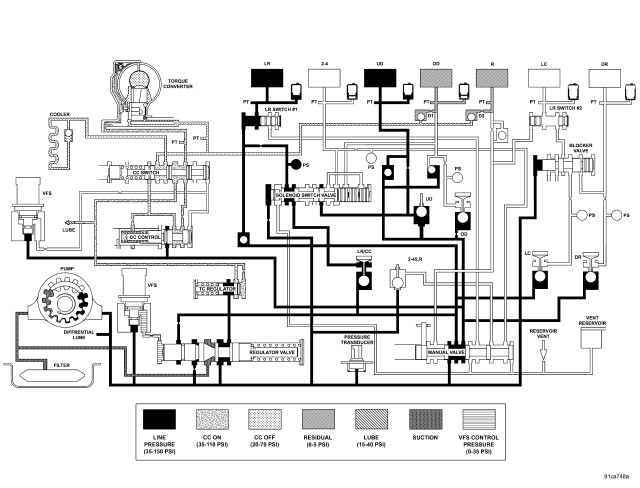

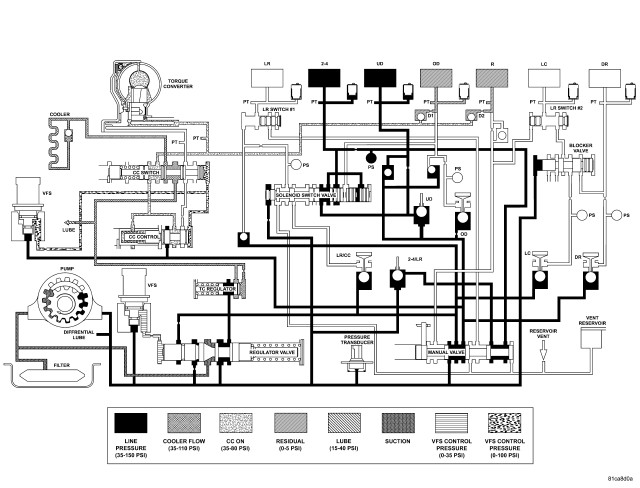

DRIVE THIRD EMCC

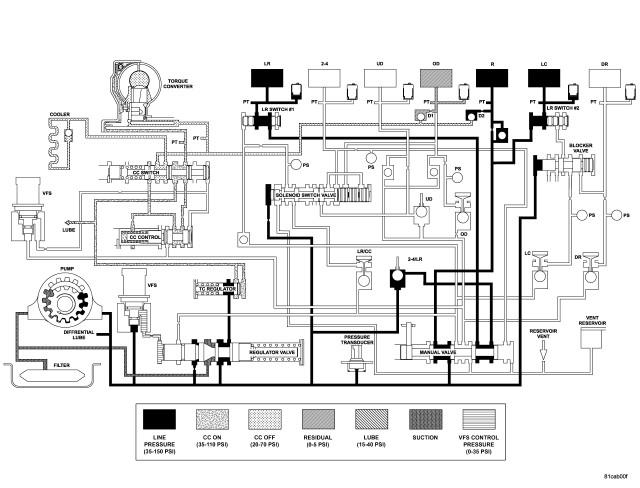

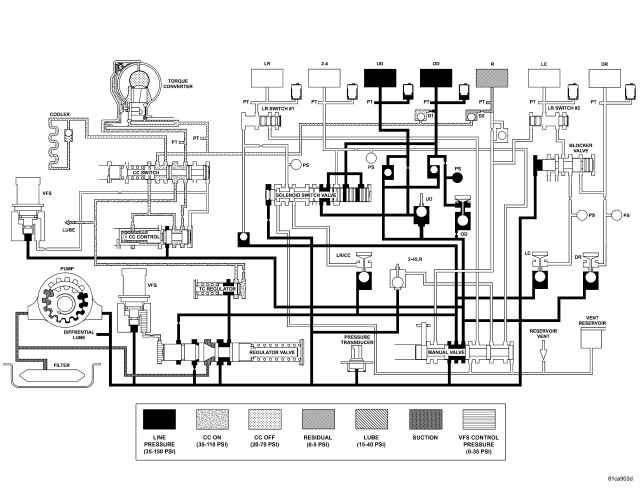

DRIVE THIRD COAST



DRIVE FOURTH



DRIVE FOURTH EMCC



FOURTH COAST



DRIVE FIFTH



DRIVE FIFTH EMCC



DRIVE SIXTH



DRIVE SIXTH EMCC



PARK NEUTRAL



REVERSE
