Upper Child Tether Cover - Removal

REMOVAL

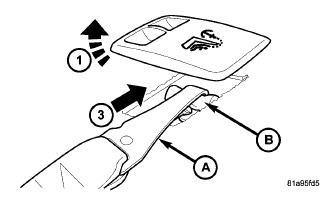

1. Open the Child Tether Cup Cover to the full open position (1).
2. Put one hand underneath the shelf trim panel to catch the push fastener, then grasp the tether anchor cover with the other hand and pull up and forward, snapping the pivot pin and retainer.

NOTE: The cover is not reusable. If removed, a new one must be reinstalled. There should be no reason to reuse an old one as a new shelf panel will come with a new cover plate on it.
