Positive Crankcase Ventilation (PCV) Valve - Installation






3.5L

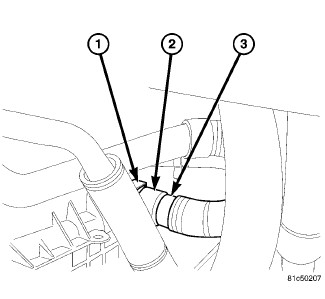

1. Install positive crankcase ventilation (PCV) valve (2) to valve cover (1) and tighten to 4 Nm (35 in. lbs.).
2. Install PCV hose (3) to PCV valve (2).
