Tail Lamp - Installation

LAMP UNIT

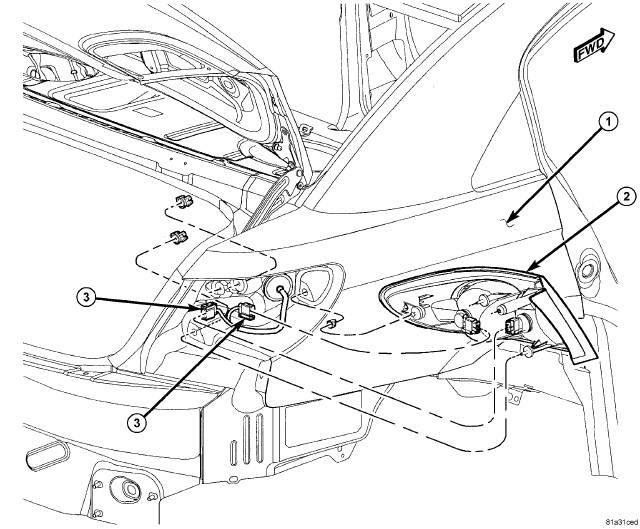

SEBRING





1. Place tail lamp (2) into position.
2. Connect wire connectors (3) to back of tail lamp.
3. Position lamp (2) to opening in quarter panel (1). Push forward firmly until it snaps into the retaining clips.
4. Install wing-nuts attaching tail lamp to rear closure panel.
5. Install trunk carpet.
6. Connect battery negative cable.

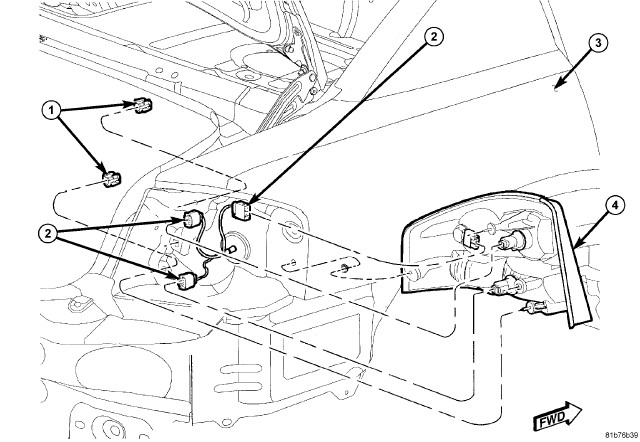

AVENGER





1. Place tail lamp (4) into position.
2. Connect wire connectors (2) to back of tail lamp (4).
3. Position lamp (4) to opening in quarter panel (3). Push forward firmly until it snaps into the retaining clips.
4. Install wing-nuts (1) attaching tail lamp (4) to rear closure panel.
5. Install trunk carpet.
6. Connect battery negative cable.
