Home >> Chrysler >> 2009 >> Sebring Convertible V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection

Horn: Testing and Inspection






HORN SYSTEM

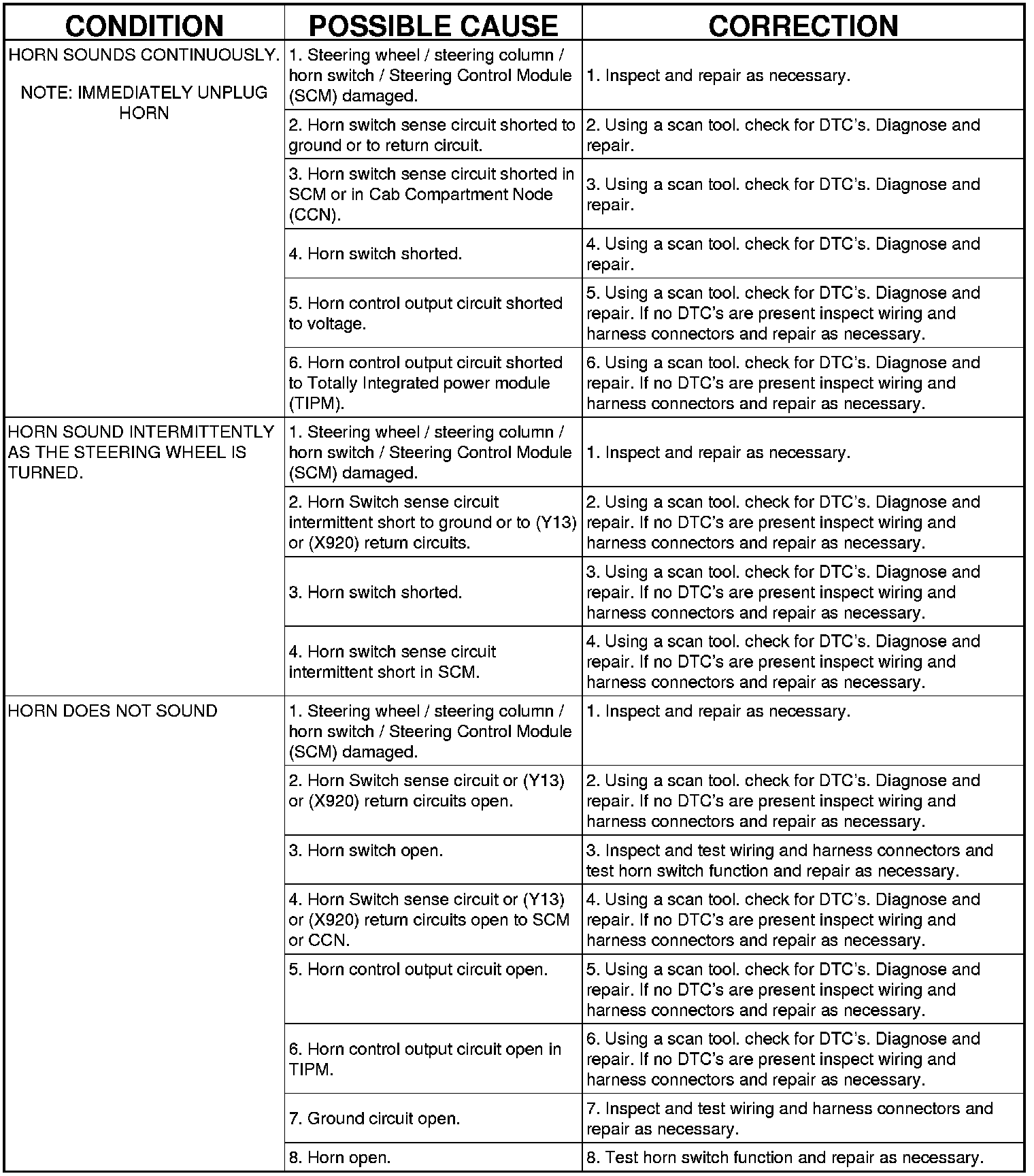

HORN SYSTEM TEST TABLE
