Backup Lamp Bulb - Installation

BULB





1. Place bulb into bulb socket.

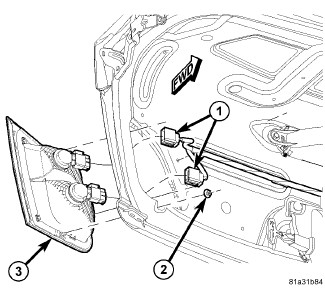

2. Position bulb socket into the backup lamp unit (3).
3. Grasp the backup lamp bulb socket and twist clockwise about a 1/4 turn.
4. Connect the backup lamp electrical connector (1).
5. Close decklid.
6. Connect the battery negative cable.
