Instrument Cluster Lens - Installation

INSTALLATION





The mask and lens are serviced together as a unit. If replacement is required for either of these components, they both will be replaced as a unit.

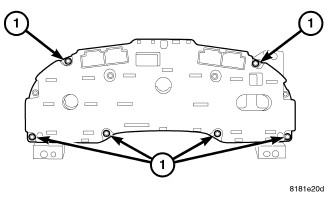

1. Position the mask/lens on the cluster housing, install the four screws (1) along the bottom back of the cluster and the two top screws (1).
2. Install the instrument cluster Instrument Cluster - Installation.
