Center Bezel

INSTALLATION

AVENGER





1. Connect the HVAC and ASBM electrical connectors.

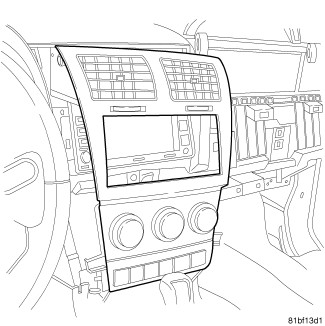

2. Align the center bezel over the slots and firmly snap into place.
3. Install the center console bezel Center Console Bezel - Installation.

SEBRING





1. Connect wire connectors to the ASBM and clock (if equipped).
2. Place center bezel over clip locations on instrument panel. Firmly, snap bezel to instrument panel engaging clips.
