Air Inlet Screen Removal

SCREEN-AIR INLET

NOTE: LHD model shown. RHD model similar.





1. Remove the cowl grille screen Cowl Panel Cover - Removal.

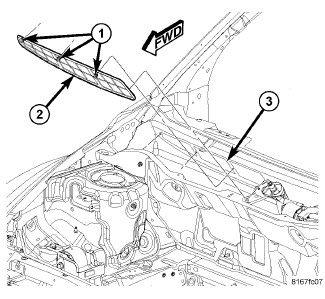

2. Disengage the three push-in retainers (1) that secure the HVAC housing air inlet screen (2) to the cowl panel (3) and remove the screen.
