Beverage Cooler

BEVERAGE COOLER

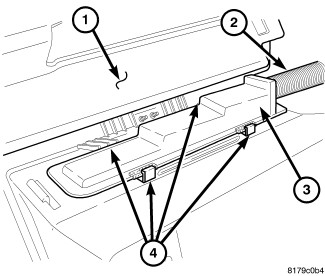

NOTE: LHD model shown. RHD model similar.





1. Remove the instrument panel top cover (1) Instrument Panel - Removal.
2. Disconnect the hose (2) from the beverage cooler outlet (3).
3. Disengage the four retaining tabs (4) that secure the beverage cooler to the back side of the instrument panel cover and remove the outlet.
