Accumulator - Description

DESCRIPTION

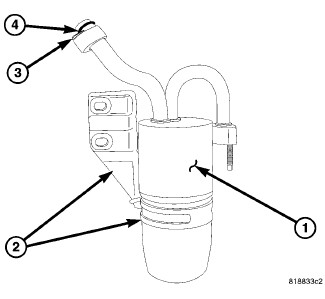

To protect the A/C compressor from any liquid slugging, an A/C accumulator (1) is used in this A/C system to retain any refrigerant that may exit from the evaporator in a liquid state.

The A/C accumulator is mounted below the engine compartment behind the right side of the front fascia. A band and mounting bracket (2) secures the A/C accumulator to the right front frame rail and the connections are sealed by use of metal gaskets (3) and rubber O-rings (4).
