Left Cylinder Head Cover(s)

REMOVAL

WARNING: Do not start or run the engine with the cylinder head cover removed. Damage or personal injury may occur.

1. Disconnect and isolate the negative battery cable.

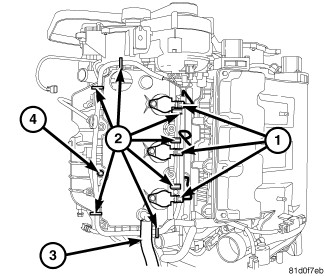

2. Disconnect and remove the three ignition coils Ignition Coil - Removal.
3. Disconnect engine harness retaining clips (2) from cylinder head cover studs. Position the engine harness aside.
4. Disconnect the PCV hose (3) from the valve cover assembly (if required).
5. Completely loosen the eight cylinder head cover retaining bolts (4) and remove the cylinder head cover.
