Piston Ring(s) - Removal






REMOVAL





1. Remove piston and connecting rod. Piston and Connecting Rod - Removal

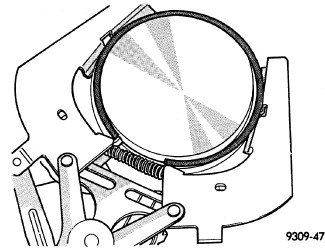

2. Remove No. 1 and No.2 piston rings from piston using a ring expander tool.
3. Remove upper oil ring side rail.
4. Remove lower oil ring side rail.
5. Remove oil ring expander
