Vibration Damper - Installation

INSTALLATION

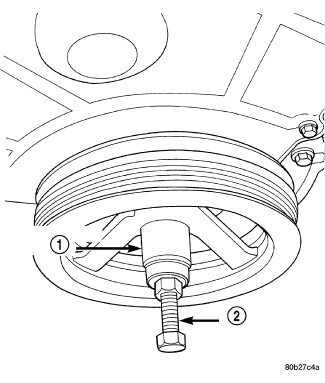

1. Install crankshaft damper using Special Tools C-4685-C1 (5.9 in.) Bolt (2), with Nut and Thrust Bearing from 6792, and 6792-1 (1) Installer.
2. Install vibration damper bolt. Torque bolt to 95 Nm (70 ft. lbs.).
3. Install the lower crossmember Crossmember - Installation.
4. Install accessory drive belt Serpentine Accessory Drive Belt - Installation.
5. Install the accessory drive belt splash shield and right front wheel.
6. Lower vehicle.
7. Install the right engine mount Engine Mount Insulator - Installation.
8. Connect the negative battery cable.
