Crankshaft Rear Oil Seal Retainer - Removal

REMOVAL










1. Remove the engine oil panEngine Oil Pan - Removal.
2. Lower the weight of the engine back onto the engine mounts.

NOTE: Before separating the transmission from the engine, use an appropriate support fixture or lifting device to support the weight of the engine.

3. Remove transmission from vehicle.
4. Remove the flex plate.

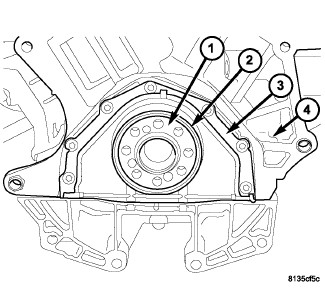

5. Remove the rear crankshaft oil seal retainer bolts.
6. Remove the crankshaft oil seal and clean all mating surfaces.
