C302 (JS27 LHD) (Driver Door Side 24 Way
C302 (JS27 LHD) (Driver Door Side 24 Way

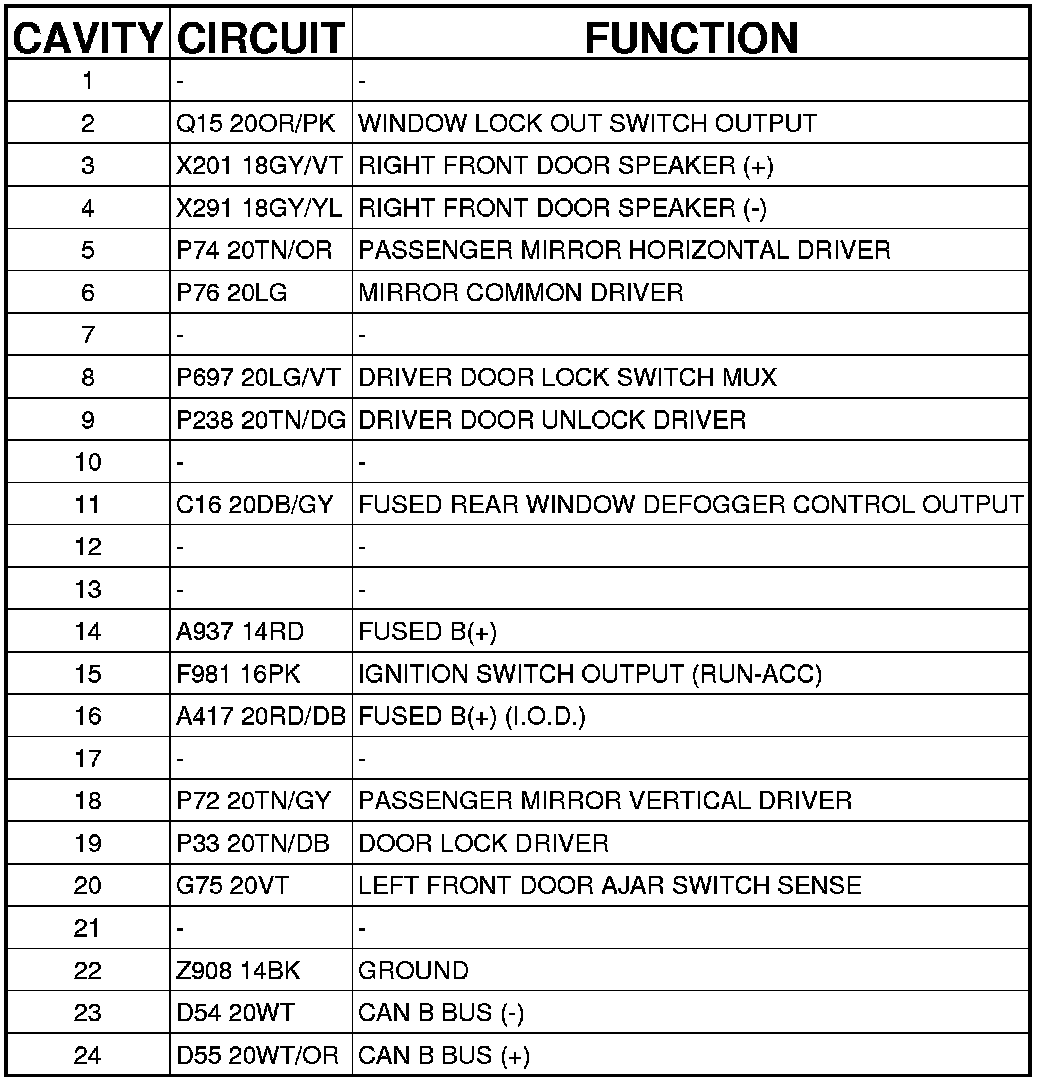

Connector (JS27 LHD) - (DRIVER DOOR SIDE 24 WAY
C302 (JS27 LHD) - (DRIVER DOOR SIDE 24 WAY
