Home >> Chrysler >> 2009 >> Sebring Convertible V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100 - C199 >> C114 (Instrument Panel Side) 43 Way

C114 (Instrument Panel Side) 43 Way






Connector - (INSTRUMENT PANEL SIDE) 43 WAY

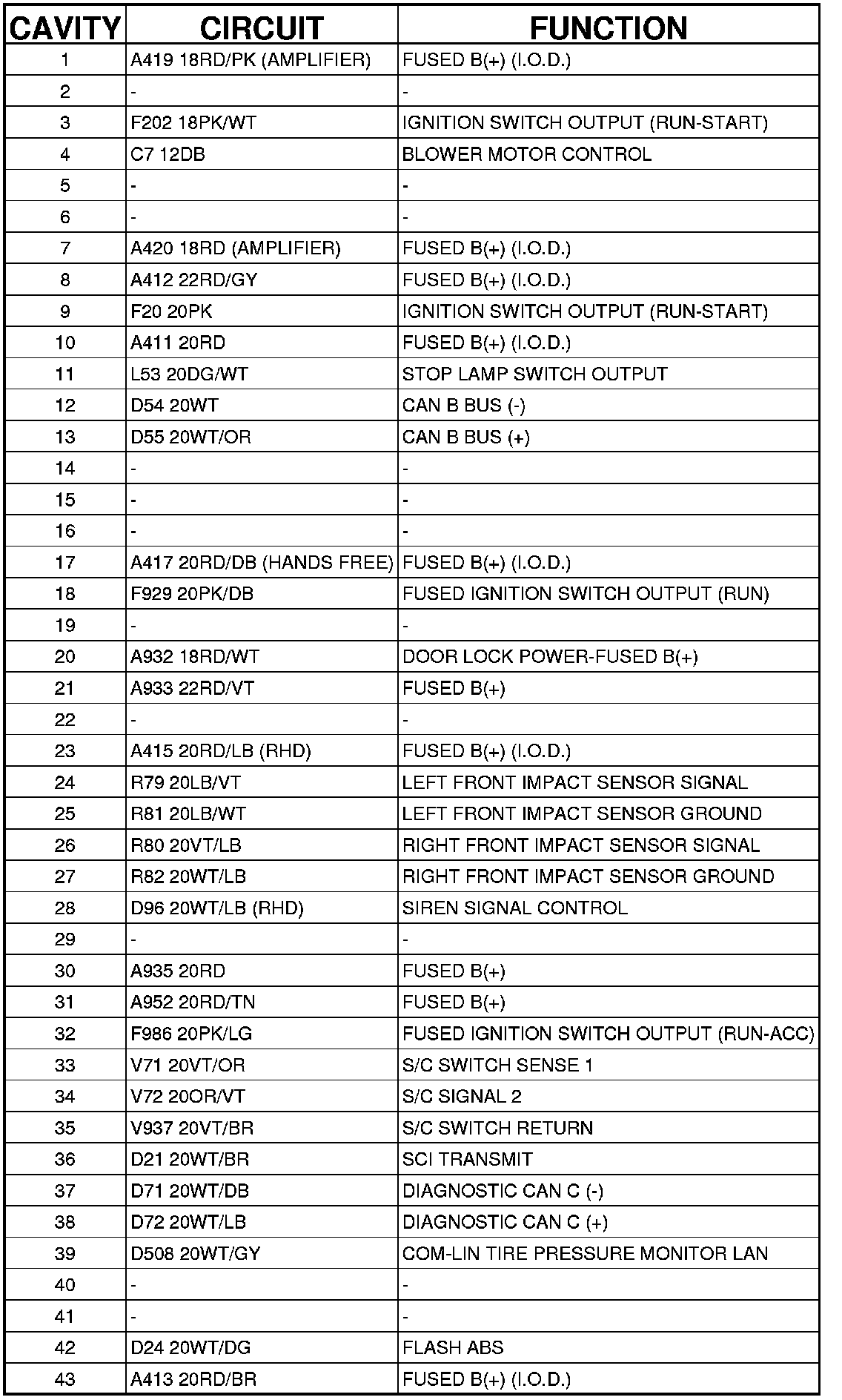

C114 - (INSTRUMENT PANEL SIDE) 43 WAY
