C114 (Headlamp And Dash Side) 43 Way

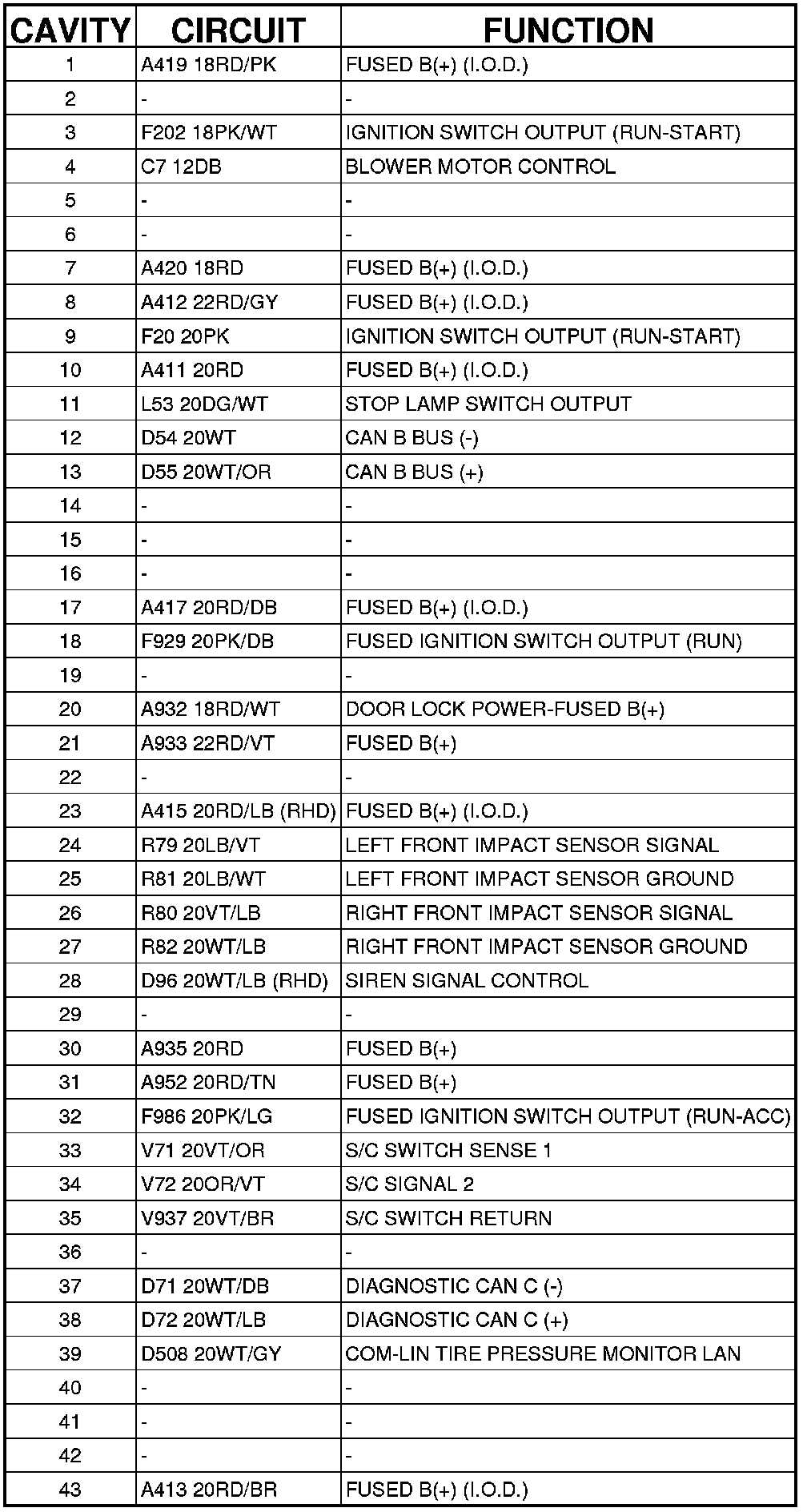

Connector - (HEADLAMP AND DASH SIDE) 43 WAY




C114 - (HEADLAMP AND DASH SIDE) 43 WAY
