C108 (Headlamp And Dash Side) 34 Way
C108 (Headlamp And Dash Side) 34 Way
Connector - (
HEADLAMP
AND DASH SIDE) 34 WAY

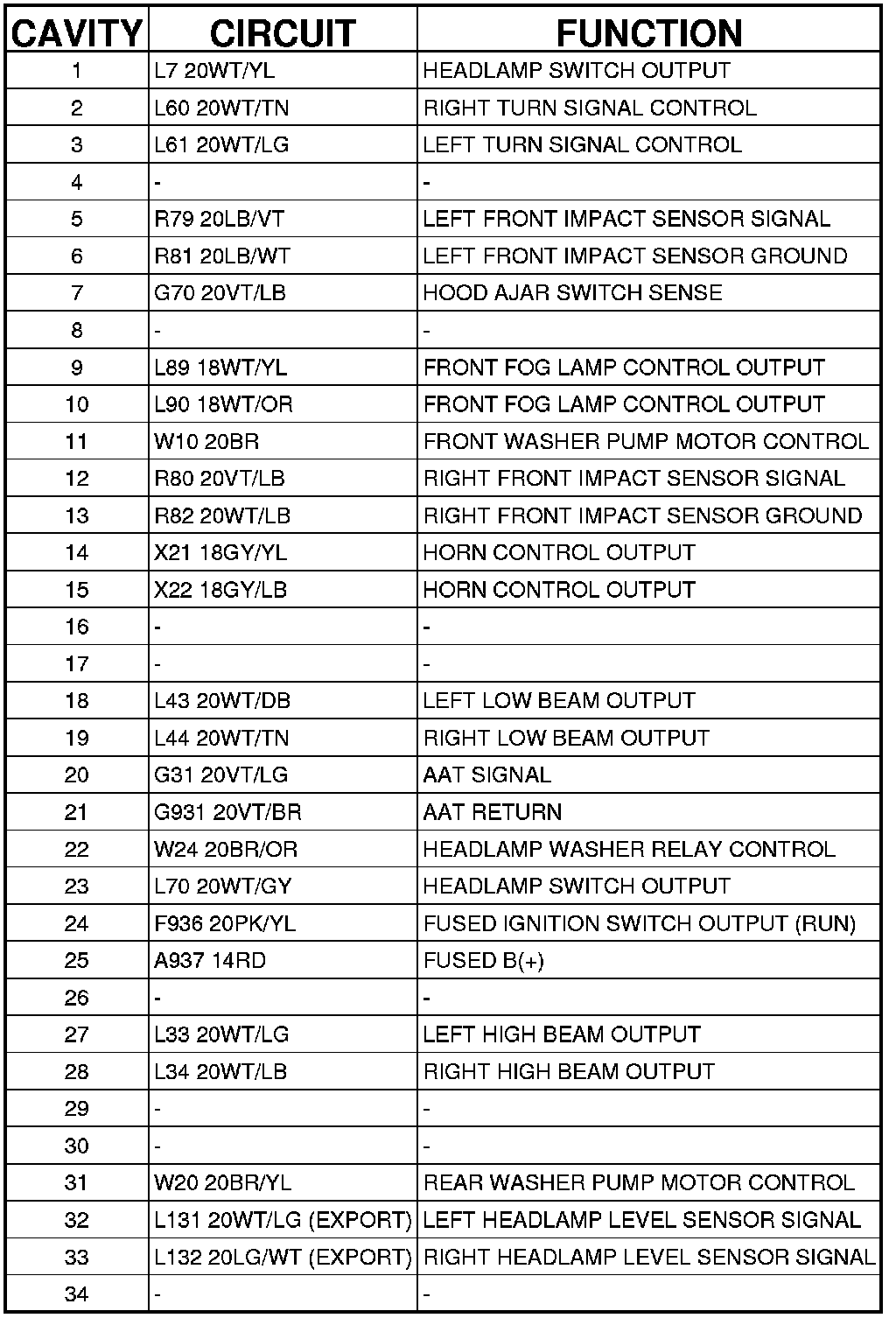

C108 - (
HEADLAMP
AND DASH SIDE) 34 WAY
