C108 (Front End Module Side) 34 Way
C108 (Front End Module Side) 34 Way

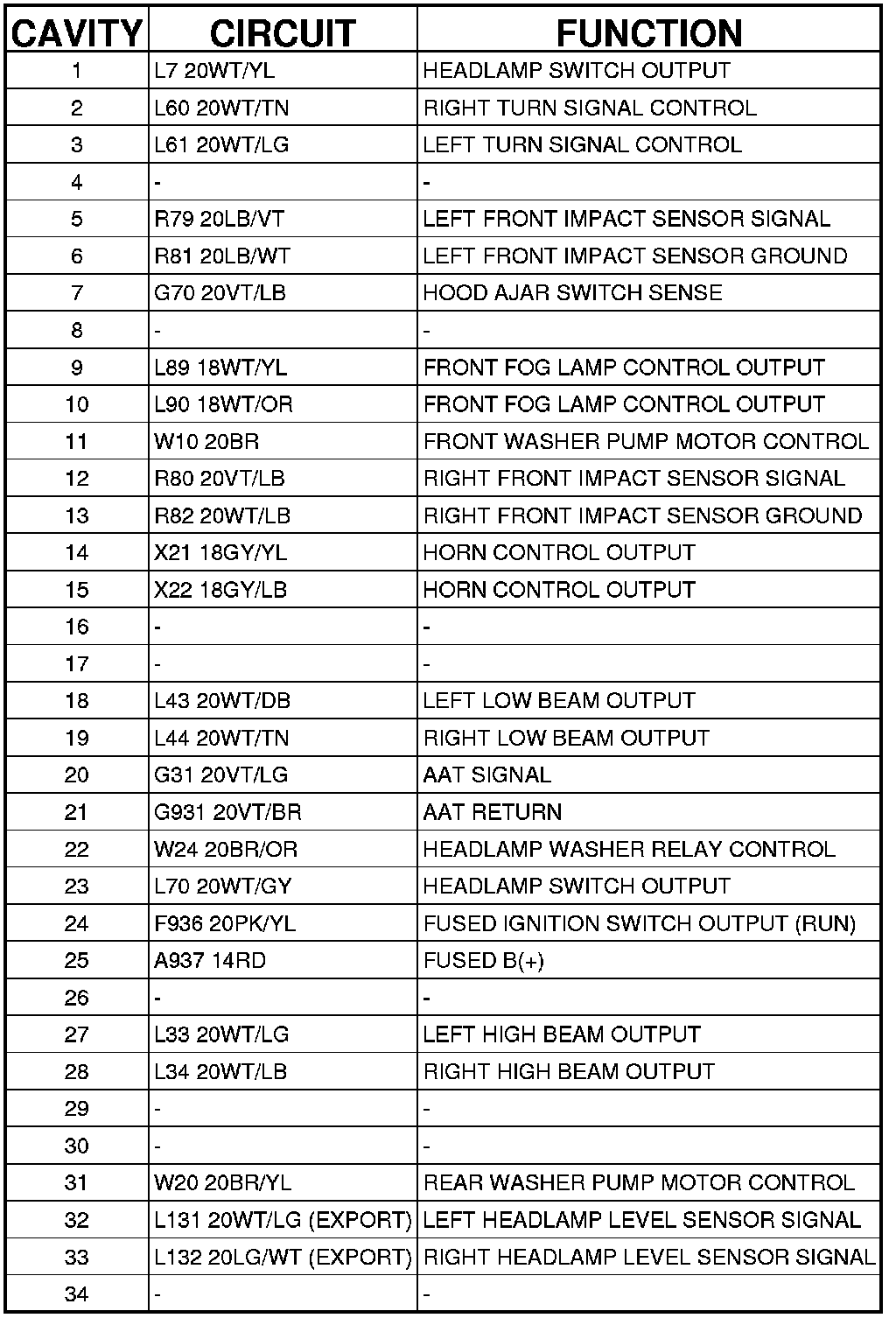

Connector - (FRONT END MODULE SIDE) 34 WAY
C108 - (FRONT END MODULE SIDE) 34 WAY
