Center Down Capture

CENTER DOWN CAPTURE





1. Remove the mid/rear headliner Convertible Top Headliner - Removal.

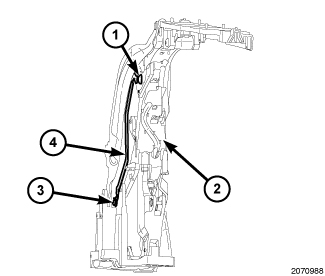

2. Remove the center rail trim by removing the two lower pushpins then carefully pulling the trim away from the center rail (2).
3. Remove the clip (3) from the pin at the bottom of the down capture assembly (4).
4. Remove the screw securing the top of the assembly to the center rail.
5. Remove the assembly from the convertible top.
