Latch Receiver - Removal

REMOVAL





1. Place the top in the vertical position.
2. Remove the front headliner. Convertible Top Headliner - Removal.

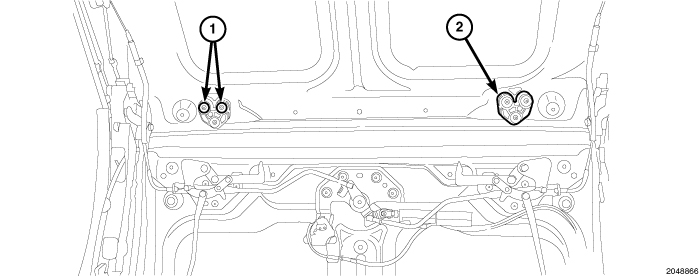

3. With a grease pencil or equivalent, mark the placement of the panel to panel latch receiver (2).
4. Remove the three fasteners (1) to the receiver and separate from the hard top.
