Hard Top Panel Latched

INSTALLATION

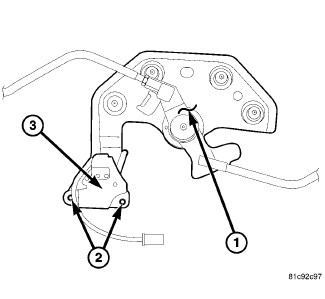

1. Position the panel latched switch (3) to the panel latch center pivot assembly (1).
2. Install the two rivets (2) securing the switch (3) to the pivot assembly (1).
3. Install the panel to panel latch center pivot assembly (1), Folding Top Latch - Installation.
