Linkage - Installation

INSTALLATION

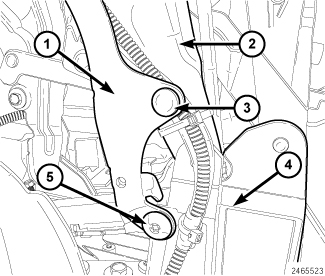

1. Position the closeout linkage (1) in the vehicle and install the fasteners (5) that secures the linkage to the primary hinge (4), one on each side.
2. Install the clip pin and clip (3) that secures the linkage to the folding top side rails (2), one on each side.
3. Install the quarter trim panels, Quarter Trim Panel - Installation.
4. Install the Mid panel headliner, Headliner - Installation.
