Number 2 And 3 Bow Spring - Installation






INSTALLATION

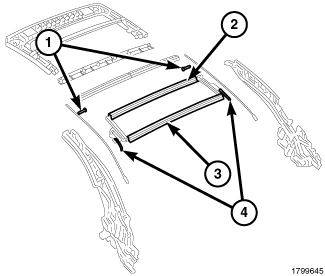

1. Connect the spring (4) to the 2/3 bow assembly bracket.
2. Reach between the top cover and the side rail assembly and connect the bow spring.
3. Close and latch the top.
