Convertible Linkage - Installation

INSTALLATION

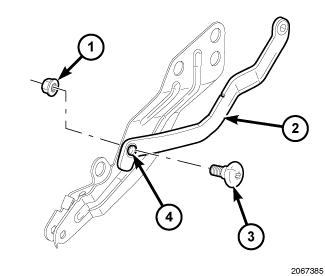

1. Place the linkage (2) into position on the vehicle.
2. Install the shoulder bolt (3) and nut (1) that secures the linkage to the top. Tighten to 18 N-m (13 ft. lbs.).





3. Install the linkage front attaching bolt (3). Tighten to 18 N-m (13 ft. lbs.).
4. Remove the prop rod.
5. Cycle the top and verify proper operation of the convertible top.
