Forward Decklid Latch Striker - Removal






REMOVAL

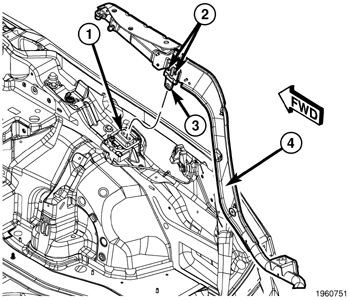

1. Place the decklid in the reverse decklid position. Convertible Top - Description.
2. With a grease pencil or equivalent, mark the striker (3) location on the deckbar (4).
3. Remove the mounting fasteners (2) and remove the striker from the deckbar.
