Decklid Alignment Bumper - Installation

INSTALLATION

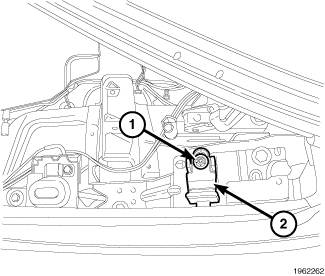

1. Position the bumper assembly (2) on the deckbar latch bracket.
2. Loosely install the bumper mounting fastener (1) and push the bumper fully inboard.
3. Close the the decklid. This will push the bumper outboard.
4. Open the decklid. Using the tick marks located on the decklid latch bracket on both sides of the bumper, move the bumper inboard one tick mark.
5. Tighten the alignment bumper mounting fastener.
6. Install the rear and side trunk trim panels. Trunk Trim Panel - Installation.
7. Close the decklid.
