Tension Cable - Installation

INSTALLATION

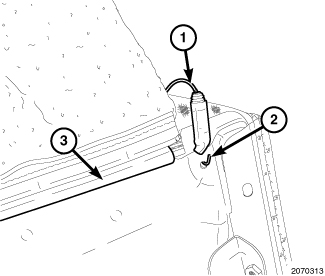

1. Carefully insert the the tension cable (1) into the opening in the top cover and guide it through.
2. Install the spring attachement (2) to the rear panel (3).
3. Insert the cable through the front rail and install the retainer screw to the tension cable.
4. Install the retainer and weatherstrip to the convertible top.
5. Install the three retainer mounting fasteners.
6. Install the top cover. Folding Top Cover - Installation.
