Outside Rearview Mirror - Installation

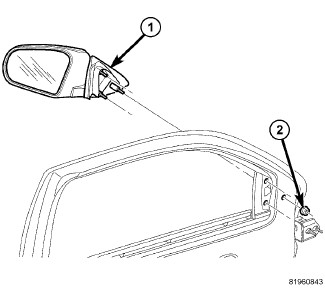

INSTALLATION





1. Feed power mirror wire harness through hole in mirror flag and seat grommet. Do not pull on wire harness to seat grommet, if so equipped.
2. Position side view mirror to vehicle.
3. Install nuts attaching side view mirror to mirror flag.
4. Engage push in fastener attaching power mirror wire connector to inner door panel, if so equipped.
5. Engage power mirror motor wire connector.
6. Install door trim panel Front Door Trim Panel - Installation.
7. Install side view mirror Flag.
