Front Door Mirror Flag - Removal






REMOVAL

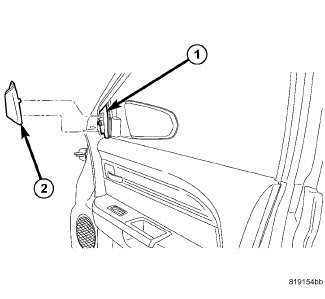

1. Using special tool C-4755 or equivalent, gently pry upward on trim panel disengaging trim clips from door (1).
2. Remove mirror flag (2) from door (1).
