Rear Grab Handle - Installation

INSTALLATION

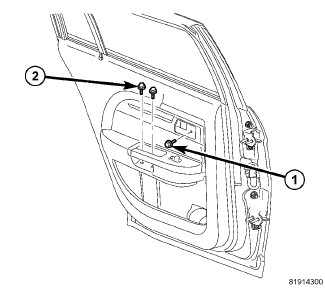

NOTE: If replacing the inside handle, transfer the window switch (if equipped) Power Window Switch - Installation .

1. Connect the window switch electrical connector (if equipped).
2. Position inside handle into trim panel and firmly snap into place.
3. Install the three screws to handle, one under the handle and two hidden beneath a trim panel inside handle (2).
