Splash Shield - Removal

REMOVAL





1. Remove the rear wheel in relation to the splash shield being removedTires and Wheels - Removal.

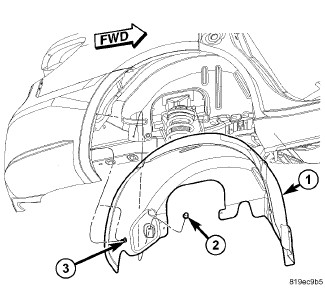

2. Remove push pin (2) from splash shield (1).
3. Remove fastener (3) from splash shield (1)
.

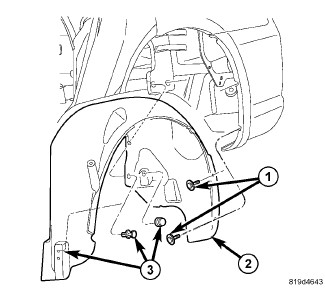

4. Remove fasteners (1) from splash shield (2).
5. Remove pushpins (3) from splash shield (2).
