Decklid Latch Striker - Installation

INSTALLATION

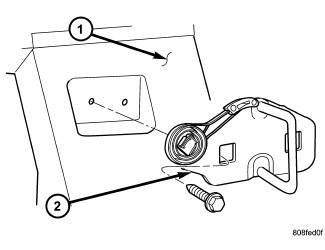

1. Position striker (2) in vehicle and align to marks made previously on rear closure panel (1).
2. Install bolts attaching striker (2) to rear closure panel (1). Tighten bolts to 12 Nm (106 in. lbs.)
3. Verify fit of decklid to deck panel and operation of decklid latch. Adjust as necessary.
