Decklid
REMOVAL
1. Open decklid.

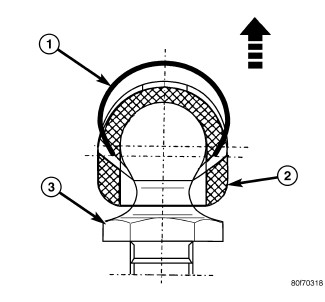

2. Using a small flat bladed tool or equivalent, release the retaining clips while pulling the ball socket away from the ball stud.
3. Remove the gas prop-rod lock caps.
4. Remove the support cylinder.
REMOVAL
1. Open decklid.
2. Using a small flat bladed tool or equivalent, release the retaining clips while pulling the ball socket away from the ball stud.
3. Remove the gas prop-rod lock caps.
4. Remove the support cylinder.
