Rear Bumper Reinforcement - Installation

INSTALLATION

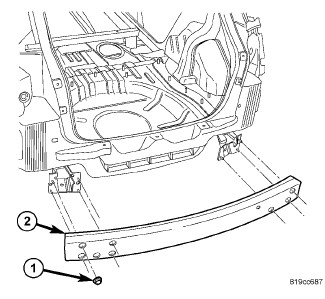

1. Position rear bumper reinforcement (2) on vehicle.
2. Install nuts (1) attaching bumper reinforcement to frame rail. Use marks made previously to properly position bumper reinforcement.
3. Tighten nuts (1) to 28 Nm (250 in.lbs.).
4. Install license plate connector push pin on bumper.
5. Install rear fascia .
