Wiper Motor - Installation

INSTALLATION

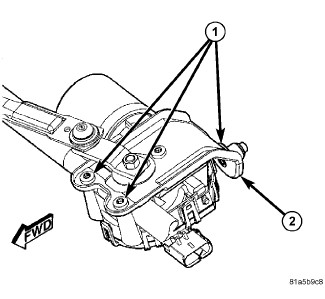

1. Place motor on wiper module (2).
2. Install the motor retaining bolts (1). Tighten bolts to 9 Nm (80 in. lbs.).
3. Using Mopar(R) approved grease, apply to ball stud and firmly snap wiper linkage onto the motor crank arm.

NOTE: Make sure the motor is in the PARK position before installing the wiper arms.

4. Connect motor to electrical connector, reconnect battery, and cycle motor to park position.
5. Install the wiper module. Wiper Arm Linkage - Installation.
