Oil Pressure Switch - Installation

INSTALLATION





1. Apply Mopar(R) Thread Sealant to the oil pressure switch threads.

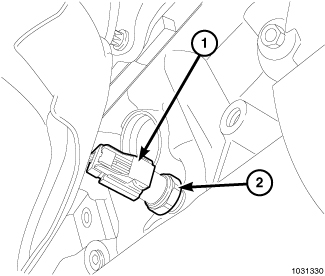

2. Install oil pressure switch (2).
3. Connect electrical connector (1).

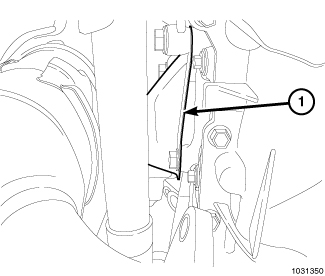

4. Install oil pressure switch heat shield (1).





5. Install the cross-under pipe (4) Exhaust Cross under Pipe - Installation
6. Install the exhaust system Exhaust System - Installation
7. Lower vehicle.
8. Connect the negative battery cable. Tighten nut to 4.5 Nm (40 in. lbs.).
9. Start engine and check for leaks.
10. Check engine oil level and adjust as necessary.
